دوربین مداربسته پاناسونیک WV-SF549

دوربین مداربسته پاناسونیک WV-SF549

High Resolution

(1080p Full HD images up to 30fps)
High Sensitivity Color Reproduction
Face Detection with Super Dynamic Technology
LDC (Lens Distortion Compensation)
Fog and Smoke Reduction
2-area VIQS (Variable Image Quality on Specified Area)
Cropping features
Various Transmission Modes
SDXC Memory card edge recording
Smartphone, Tablet PC monitoring*
Advanced Face Detection and Facial Recognition
Vandal Resistant Mechanism

ایران پاناسونیک

آدرس سایت:www.iranpanasonic.ir
تلفن: [phone]

دوربین مداربسته پاناسونیک WV-SW355L

دوربین مداربسته پاناسونیک WV-SW355L


•720p HD images up to 30fps
•Full frame (up to 30fps) transmission at 1,280x960 image size
•Super Dynamic and Adaptive Black Stretch (ABS) technologies deliver 128x wider dynamic range
•High resolution recording by UniPhier®, Panasonic's proprietary System LSI platform
•Face Super Dynamic ensures clear images of the face
•Auto Back Focus for easier installation
•True Day/Night
•Variable Image Quality on Specified Area (VIQS) enables lower data size transfer by allowing a designated area to retain higher image quality while the surrounding areas quality is decreased
•High sensitivity: 0.3 lux (Color), 0.05 lux (B/W) at F1.6 (Wide)
•H.264 (High profile) dual stream and JPEG output
•Power over Ethernet (PoE) IEEE 802.3af
•ONVIF compliant




ایران پاناسونیک

آدرس سایت:www.iranpanasonic.ir
تلفن: [phone]

دوربین مداربسته پاناسونیک WV-SW558

دوربین مداربسته پاناسونیک WV-SW558


•1,080p Full HD images up to 30 fps and 360p image up to 30fps simultaneously
•Combining new “UniPhier®”, Panasonic’s proprietary System LSI platform and 2 areas VIQS (Variable Image Quality on Specified area) function can decrease maximum network bandwidth as much as (50%)
•Cropping function enables whole images (1,920 x 1,080) and parts of an image (640 x 360) simultaneously. Up to 4 image capture areas can be specified, and it is also possible to control the sequence.
•Multiple H.264 (High profile) streams and JPEG streams ensure simultaneous real time monitoring and high resolution recording.
•Super high resolution at Full HD / 1,920 x 1,080 via 3.1Megapixel high sensitivity MOS Sensor.
•Super Dynamic and ABS (Adaptive Black Stretch) technologies deliver 128x wider dynamic range compared to conventional cameras.
•Face Super Dynamic Range technology ensures clear images of the face.
•High sensitivity with Day & Night (Electrical) function:0.5 lx (Color), 0.3 lx (B/W) at F1.4
•Using Panasonic distinctive LDC (Lens Distortion Compensation) function, images without distortion can be monitored though using wide angle lens.
•Superior color reproduction via primary (RGB) color filter
•2x extra zoom at VGA resolution
•Face detection function detects the presence and position of a human face and the information is sent by video stream.
•SDXC/SDHC/SD Memory card slot for manual recording (H.264 / JPEG), alarm recording (H.264 / JPEG) and backup upon network failure (JPEG)
•Supports SSL, DDNS (viewnetcam, RFC2136)
•Onvif compliant
•IP66 rated water and dust resistant. Compatible with IEC60529 measurement standard.
•Vandal resistant for high reliability
•2.8 ~ 10.0 mm, 3.6x Varifocal Auto Iris Lens



ایران پاناسونیک
آدرس سایت:www.iranpanasonic.ir
تلفن: [phone]

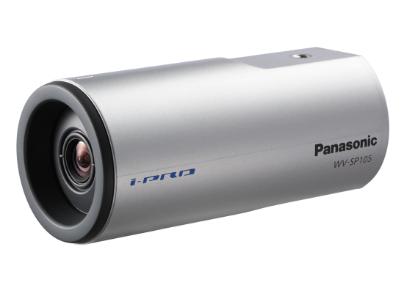

دوربین مداربسته پاناسونیک WV-SP105

دوربین مداربسته پاناسونیک WV-SP105
Chip Inch Size: 1/3
Colour Type ;Colour / Monochrome
Resolution: 1280 x 960
Specialist Type: Network
Sensitivity Lux: 0.03 @ F2.2
Electrical Specifications: Voltage: 12 V DC, PoE

Focal Length mm: 3.54
Picture Elements HxV :1280 x 960
Network Properties: Image Frame Rate: 30 fps
Interface: 10Base-T / 100Base-TX, RJ-45 connector
Network Protocols: TCP/IP, UDP/IP, HTTP, RTSP, RTP, RTP/RTCP, FTP*

Signal Mode: PAL, NTSC
Compression Type: H.264, M-JPEG, JPEG
Electrical Specifications:Power Consumption: 2.8 W

Physical Specifications: Dimensions mm: 55 x 55 x 122
Weight g: 180

Environmental Specifications: Operating Temperature oC: 0 ~ 40

System Requirements: Operating System: Microsoft Windows
Web Browser: Windows Internet Explorer 8.0

Environmental Specifications :Operating Humidity %: 90 or less

Model Info: *SMTP, DHCP, DNS, DDNS, NTP, SNMP



ایران پاناسونیک
آدرس سایت:www.iranpanasonic.ir
تلفن: [phone]

دوربین مداربسته پاناسونیکWV-SF135

دوربین مداربسته پاناسونیکWV-SF135

Megapixel high sensitivity MOS sensor w/ 720p HD images up to 30 fps•1.3
•Full frame (up to 30 fps) transmission at 1,280 x 960 image size
•Face Detection function detects the position of the human face and the information is sent by XML or video stream
•ABS (Adaptive Black Stretch) technologies deliver 128x wider dynamic range
•High sensitivity w/ Day & Night (Electrical) function: 0.8 lx (Color), 0.6 lx (B/W) at F2.2
•Multiple H.264 (High Profile) and JPEG streams ensure simultaneous real time monitoring
•VIQS (Variable Image Quality on Specified Area) technology allows designated areas to retain higher image quality, enabling lower image file size and bit rate
•PoE•ONVIF compliant

ایران پاناسونیک
آدرس سایت:www.iranpanasonic.ir
تلفن: [phone]
