دوربین مداربسته پاناسونیک WV-CS580

دوربین مداربسته پاناسونیک WV-CS580

Model Code              WV-CS580

Chip Inch Size                1/4
Colour Type              True Day / Night
Resolution               650  TVL
Dome Type                   PTZ
Sensitivity lux                 0.5
Pan Speed o/ sec            0.065 ~ 120
Tilt Speed o/ sec             0.065 ~ 120
Indoor/Outdoor                Indoor
Mount Type                      Surface
Electrical Specifications        Voltage: 240 V AC

Focal length                    3.3 ~ 119
Presets                         256
Auto Gain Control               Yes
White Balance                     Yes
Electronic Shutter range             1/120~ 1/10,000
S/ N (Signal/ Noise) Ratio dB           >50
Synchronisation                  Internal
Signal Mode                     PAL
Video Output                  1.0 V [p-p] / PAL composite 75
Zoom Ratio                         x36
Network Properties                      Interface: Coaxial Multiplex System, RS485

Electrical Specifications          Power Consumption: 4.3W

Physical Specifications                Dimensions mm: 135 x 202
Weight g:                        1700

Environmental Specifications               Operating Temp oC: –10 ~ +50
Operating Humidity %: 90

Model Info                  Panasonic WV-CS580 is an all-in-one 24-hour surveillance camera that features 36x zoom and super dynamic 6 technology.  It has video motion detector (VMD) with mask 8 x 6 areas. It also has 4 alarm inputs and 2 outputs terminal. Its alarm actions include terminal output, camera positioning, auto pan, patrol, SEQ, sort, auto track, B/W and command output

ایران پاناسونیک

آدرس سایت:www.iranpanasonic.ir
تلفن: [phone]

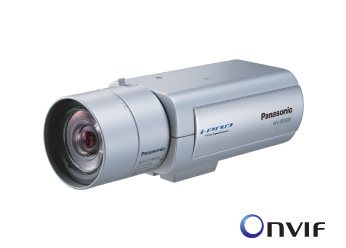

دوربین مداربسته پاناسونیک WV-SP509

دوربین مداربسته پاناسونیک WV-SP509


•Super high resolution at Full HD/1,920 x 1,080 created by 3.1 Megapixel high sensitivity MOS Sensor.

•Super Dynamic and ABS (Adaptive Black Stretch) technologies deliver 128x wider dynamic range compared to conventional cameras.

•Face Super Dynamic Range technology ensures clear face image.

•High sensitivity with Day & Night (IR) function:0.5 lx (Color), 0.06 lx (B/W) at F1.4

•Panasonic’s LDC (Lens Distortion Compensation) function, can reduce distortion achieved via wide angle lens.

•ABF (Auto Back Focus) ensures easy installation & ensures stable focus in color and B/W modes

•VMD (Video Motion Detection) with 4 programmable detection areas, 15 steps sensitivity level and 10 steps detection selection

•Face detection function detects the position of human face and the information is sent by video stream.

•Privacy Zone can mask up to 2 private areas, such as house windows and entrances/exits.

•Full duplex bi-directional audio allows interactive communication between camera site and monitoring site.

•SDXC/SDHC/SD Memory card slot for manual recording (H.264/JPEG), alarm recording (H.264/JPEG) & backup on network failure (JPEG)

•Supports SSL, DDNS (viewnetcam, RFC2136)

•Still images (JPEG) can be viewed on mobile phones via the Internet.
•Onvif compliant

ایران پاناسونیک
آدرس سایت:www.iranpanasonic.ir
تلفن: [phone]

دوربین مداربسته پاناسونیک WV-CF600

دوربین مداربسته پاناسونیک WV-CF600


Super Dynamic 6technology delivers 160x wider dynamic range compared to conventional cameras
• High resolution: 650 TV lines
• High sensitivity with Day/Night function: 0.08 lx (Color), 0.008 lx (B/W) at F1.4. IR cut filter switches on/off to enhance the sensitivity in B/W mode. (WV-CF634)
• High sensitivity with Day/Night (electrical) function: 0.08 lx (Color), 0.05 lx (B/W) at F1.4 (WV-CF614)
• ABS (Adaptive Black Stretch) enhances visibility of dark areawithout degrading image quality in bright area.
• ABF (Auto Back Focus) ensures easy installation.
• Various adjustment features including ATW (Auto Tracing White Balance) and ALC (Automatic Light Control)
• 2.8 ~ 10 mm 3.6x Varifocal Auto Iris lens
• 3-dimensional color conversion function for natural color reproduction even in lower color temperature situation
• Adaptive Digital Noise Reduction: Integration of 2D-DNR and 3D-DNR ensures noise reduction in various conditions.
• Electronic sensitivity enhancement: Auto (Up to 32x) / Manual (Up to 512x)
• Electronic shutter from 1/120 to 1/120,000 sec.
• Digital zoom: Up to 2x
• Auto Image Stabilizer for applications where vibration or wind is a concern
• Internal synchronization
• Over the coaxial cable data communication
• 16 alphanumerics camera title display
• Multi language: English, French, Italian, Spanish, German, Russian, Chinese, Japanese
• Wide coverage :WV-CF634 Horizontal: 100.8 °, Vertical: 73.8 °WV-CF614 Horizontal: 100.3 °, Vertical: 73.4 °
• Lens Distortion Compensation
• On screen display menu
• Monitor output and ELC mode for easier lens adjustment upon installation
• 3-way hinge (horizontal, vertical and swivel rotation) for easyinstallation
• Various mounting options: Surface mount, Embedded mount (with optional WV-Q174), Mounting to a junction box (locally obtained)
• Smart look fits for various applications such as shopping mall, hotels and hospitals

ایران پاناسونیک

آدرس سایت:www.iranpanasonic.ir
تلفن: [phone]

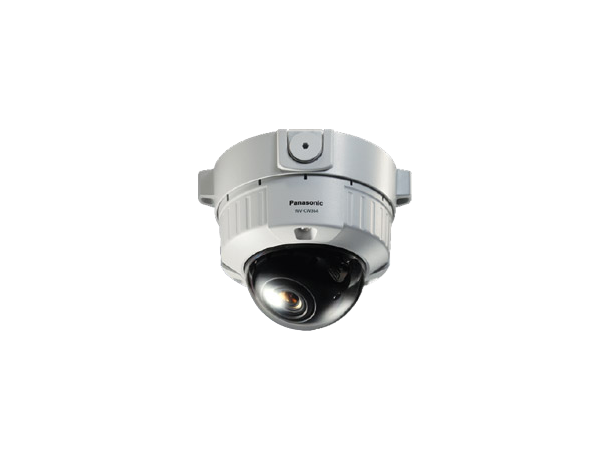

دوربین مداربسته پاناسونیک WV-CW364

دوربین مداربسته پاناسونیک WV-CW364


Chip Inch Size 1/3
Colour Type True Day / Night
Resolution TVL 540
Dome Type Static
Sensitivity lux 0.05
Indoor/Outdoor Outdoor
Mount Type Surface
Electrical Specifications Voltage: 12 V DC / 24 V AC
Power Consumption: 2.9 W

Focal length 2.8 ~ 10
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
S/ N (Signal/ Noise) Ratio dB 50
Synchronisation Internal/Multiplexed Vertical Drive (VD2)
Signal Mode PAL, NTSC
Video Output 1.0 V [p-p] / 75 ohms
ایران پاناسونیک
آدرس سایت:www.iranpanasonic.ir
تلفن: [phone]

دوربین مداربسته پاناسونیک WV-CW334

دوربین مداربسته پاناسونیک  WV-CW334


High resolution: 540 TV lines
• High sensitivity with True Day/Night function (WV-CW364)
: 0.6 lx (Color)
: 0.05 lx (B/W)
• High sensitivity with Simple Day/Night function (WV-CW334)
: 0.6 lx (Color)
: 0.4 lx (B/W)
• ABS (Adaptive Black Stretch) enhances visibility of dark area without degrading image quality in bright area.
• Vandal resistant mechanism for high reliability
• IP66 rated water and dust resistant. Compatible with IEC60529 measurement standard.
• Various adjustment features including BLC (Back Light Compensation), ATW (Auto Tracing White Balance) and ALC (Automatic Light Control)
• 2 White Balance modes are selectable with Dip Switch:ATW (Auto Tracking White Balance) / AWC (Automatic White Balance Control)
• 2.8 ~ 10 mm 3.6x Varifocal Auto Iris lens
• Internal/Multiplexed Vertical Drive (VD2) synchronization
• Monitor output for easier lens adjustment upon installation
• 3-way hinge (horizontal, vertical and swivel rotation) for easyinstallation
• Various mounting options: Flush mount, Surface mount and Embedded ceiling mount
• Optional heater maintains operating temperature –30 °C ~ +50 °C (–22 °F ~ 122 °F
