مقالات دوربین مداربسته پاناسونیک
معرفی و توضیح در مورد دوربین مداربسته پاناسونیک
مقالات دوربین مداربسته پاناسونیک
معرفی و توضیح در مورد دوربین مداربسته پاناسونیکدوربین مداربسته پاناسونیک WV-SW539
دوربین مداربسته پاناسونیک WV-SW539
Image chip size 1/3
Image chip type MOS
Image Compression H.264, M-JPEG, JPEG
Audio G.711/G.726
Auto-Focus No
Indoor / Outdoor Indoors or Outdoors
Ingress Protection No
Colour / monochrome Colour/Mono switching
POE built-in Yes - no splitter required
POE Class Class 2 (3.84-6.49W)
Max. Resolution 1920 X 1080
Min. low-light lux 0.004
Supply Volts 12V or PoE
Lens Mount N/A
Lens Focal Length 2.8~10mm
Viewing Angle 24.4°~80.6° Horizontal Field of View
Aspect ratio 16:9
Megapixels 3 MP
Supplied with lens Yes
Accepts auto-iris lens Yes
Max. Images per second 30
PSU included No
Power Consumption No
ایران پاناسونیک
دوربین مداربسته پاناسونیک WV-SW155
دوربین مداربسته پاناسونیک WV-SW155
•1.3 Megapixel high sensitivity MOS sensor w/ 720p HD images up to 30 fps
•Full frame (up to 30 fps) transmission at 1,280 x 960 image size
•MEGA Super Dynamic and ABS (Adaptive Black Stretch) technologies deliver 128x wider dynamic range
•Face MEGA Super Dynamic technology ensures clear images of the face
•High sensitivity w/ Day & Night (Electrical) function: 0.8 lx (Color), 0.6 lx (B/W) at F2.2
•Multiple H.264 (High Profile) and JPEG streams ensure simultaneous real time monitoring
•VIQS (Variable Image Quality on Specified Area) technology allows designated areas to retain higher image quality, enabling lower image file size and bit rate
•IP66-rated water and dust resistant
•PoE
•SD/SDHC memory card slot for manual recording
•ONVIF compliant
ایران پاناسونیک
آدرس سایت:www.iranpanasonic.ir
تلفن: 77615100
•1.3 Megapixel high sensitivity MOS sensor w/ 720p HD images up to 30 fps
•Full frame (up to 30 fps) transmission at 1,280 x 960 image size
•MEGA Super Dynamic and ABS (Adaptive Black Stretch) technologies deliver 128x wider dynamic range
•Face MEGA Super Dynamic technology ensures clear images of the face
•High sensitivity w/ Day & Night (Electrical) function: 0.8 lx (Color), 0.6 lx (B/W) at F2.2
•Multiple H.264 (High Profile) and JPEG streams ensure simultaneous real time monitoring
•VIQS (Variable Image Quality on Specified Area) technology allows designated areas to retain higher image quality, enabling lower image file size and bit rate
•IP66-rated water and dust resistant
•PoE
•SD/SDHC memory card slot for manual recording
•ONVIF compliant
ایران پاناسونیک
آدرس سایت:www.iranpanasonic.ir
تلفن: 77615100

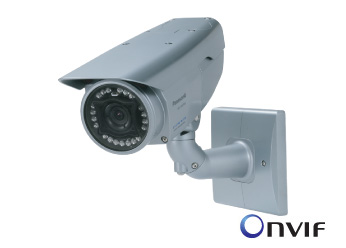

دوربین مداربسته پاناسونیک WV-SW316L
دوربین مداربسته پاناسونیک WV-SW316L
Progressive scan 1.3 Megapixel MOS Sensor
Wide Dynamic Range and ABS (Adaptive Black Stretch)
Face Wide Dynamic Range
VIQS (Variable Image Quality on Specified area) technology
High sensitivity: 0.3 lx (Color), 0 lx(B/W) at F1.3
H.264 (High profile) dual stream and JPEG output
ABF (Auto Back Focus) ensures easy installation and stable focus in both color and B/W modes.
Power over Ethernet (PoE) IEEE 802.3af
IP66 rated water and dust resistant
IR LED equipped
WV-SW316L sample of The unlawful dumping in 140 lx color environment[HD]
ایران پاناسونیک
آدرس سایت:www.iranpanasonic.ir
تلفن: 77615100
Progressive scan 1.3 Megapixel MOS Sensor
Wide Dynamic Range and ABS (Adaptive Black Stretch)
Face Wide Dynamic Range
VIQS (Variable Image Quality on Specified area) technology
High sensitivity: 0.3 lx (Color), 0 lx(B/W) at F1.3
H.264 (High profile) dual stream and JPEG output
ABF (Auto Back Focus) ensures easy installation and stable focus in both color and B/W modes.
Power over Ethernet (PoE) IEEE 802.3af
IP66 rated water and dust resistant
IR LED equipped
WV-SW316L sample of The unlawful dumping in 140 lx color environment[HD]
ایران پاناسونیک
آدرس سایت:www.iranpanasonic.ir
تلفن: 77615100
دوربین مداربسته پاناسونیک WV-SW598
دوربین مداربسته پاناسونیک WV-SW598
High reliability and smooth pan/tilt mechanism
30x Optical Zoom, 90x Ex Optical Zoom
Advanced Auto Tracking
High Resolution(1080p Full HD images up to 30fps)
High sensitivity with Day/night function (IR)
Face Detection with Super Dynamic Technology
Fog and Smoke Reduction
2-area VIQS (Variable Image Quality on Specified Area)
Various Transmission Modes
32 areas privacy zone masking
SDXC Memory card edge recording
Smartphone, Tablet PC monitoring
Functions of motion detection, sound detection and alarm detection
Rain-wash coating
Dehumidifier
Waterproof and dustproof
Wide Ambient operate temperature
Vandal Resistant Mechanism
ایران پاناسونیک
آدرس سایت:www.iranpanasonic.ir
تلفن: 77615100
High reliability and smooth pan/tilt mechanism
30x Optical Zoom, 90x Ex Optical Zoom
Advanced Auto Tracking
High Resolution(1080p Full HD images up to 30fps)
High sensitivity with Day/night function (IR)
Face Detection with Super Dynamic Technology
Fog and Smoke Reduction
2-area VIQS (Variable Image Quality on Specified Area)
Various Transmission Modes
32 areas privacy zone masking
SDXC Memory card edge recording
Smartphone, Tablet PC monitoring
Functions of motion detection, sound detection and alarm detection
Rain-wash coating
Dehumidifier
Waterproof and dustproof
Wide Ambient operate temperature
Vandal Resistant Mechanism
ایران پاناسونیک
آدرس سایت:www.iranpanasonic.ir
تلفن: 77615100
دوربین مداربسته پاناسونیک WV-SP305
دوربین مداربسته پاناسونیک WV-SP305
mage Sensor 1/3 inch MOS Sensor
Effective Pixels Approx. 1.3 megapixel
Scanning Mode Progressive scan
Scanning Area 4.8 mm (H) x 3.6 mm (V)
Electronic Sensitivity UP OFF / AUTO (Max. 2x (2/30 s), 4x (4/30 s), 6x (6/30 s), 10x (10/30 s), 16x (16/30 s))
Simple Day/Night Mode AUTO / OFF
Digital Noise Reduction High / Low
Video Motion Detection 4 areas, Sensitivity: 15 steps, Detection size: 10 steps
Privacy Zone Up to 2 zones, Gray
Camera Title (OSD) Up to 16 alphanumeric characters
Focus Adjustment Focus Assist
Browser Camera Control Brightness, AUX ON / OFF
GUI Display Mode Spot, Quad: Image from 16 cameras can be displayed in 4 different Quad
screens or 16 split screen (JPEG only). 20 characters camera title available.
Digital Zoom 1x, 2x, 4x controlled by browser GUI
Camera Title Up to 20 alphanumeric characters
Clock Display Time: 12H/24H, Date: 5 formats on the browser, Summer time (Manual)
Alarm Control Reset
One Shot Capture A still picture will be displayed on a newly opened window.
Audio Mic (Line) Input: ON / OFF Volume adjustment: Low / Middle / High,
Audio Output: ON / OFF Volume adjustment: Low / Middle / High
SD Memory Data Download Still or motion Images recorded in the SDHC/SD memory card can be downloaded.
ایران پاناسونیک
آدرس سایت:www.iranpanasonic.ir
تلفن: 77615100
mage Sensor 1/3 inch MOS Sensor
Effective Pixels Approx. 1.3 megapixel
Scanning Mode Progressive scan
Scanning Area 4.8 mm (H) x 3.6 mm (V)
Electronic Sensitivity UP OFF / AUTO (Max. 2x (2/30 s), 4x (4/30 s), 6x (6/30 s), 10x (10/30 s), 16x (16/30 s))
Simple Day/Night Mode AUTO / OFF
Digital Noise Reduction High / Low
Video Motion Detection 4 areas, Sensitivity: 15 steps, Detection size: 10 steps
Privacy Zone Up to 2 zones, Gray
Camera Title (OSD) Up to 16 alphanumeric characters
Focus Adjustment Focus Assist
Browser Camera Control Brightness, AUX ON / OFF
GUI Display Mode Spot, Quad: Image from 16 cameras can be displayed in 4 different Quad
screens or 16 split screen (JPEG only). 20 characters camera title available.
Digital Zoom 1x, 2x, 4x controlled by browser GUI
Camera Title Up to 20 alphanumeric characters
Clock Display Time: 12H/24H, Date: 5 formats on the browser, Summer time (Manual)
Alarm Control Reset
One Shot Capture A still picture will be displayed on a newly opened window.
Audio Mic (Line) Input: ON / OFF Volume adjustment: Low / Middle / High,
Audio Output: ON / OFF Volume adjustment: Low / Middle / High
SD Memory Data Download Still or motion Images recorded in the SDHC/SD memory card can be downloaded.
