دوربین پاناسونیک مدلWV-NF284

دوربین پاناسونیک مدلWV-NF284 •


Built-in MPEG-4 and JPEG digital signal output at VGA image size with up to 30 fps

•  MPEG-4/JPEG dual stream output for simultaneous live monitoring and high resolution recording

•  3.6x variable-focal lens (2.8 -10mm)

•  Power over Ethernet (PoE) IEEE 802.3af.

•  Progressive scan type CCD image sensor

•  Image refresh rate: 0.1 fps - 30 fps

•  Built-in SD Memory card slot for FTP backup

•  Built-in digital motion detector

•  Built-in microphone

•  Automatic electronic sensitivity enhancement


ایران پاناسونیک
آدرس سایت:www.iranpanasonic.ir
تلفن: [phone]

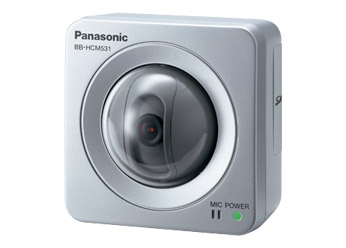

دوربین پاناسونیک مدل BB-HCM531

دوربین پاناسونیک مدل BB-HCM531

Simultaneous MPEG-4 and JPEG
Pan/Tilt 10x Digital Zoom
Audio 2-Way Communication
SD Memory Card Recording
Splash- Resistant Body
Analog Video Output (NTSC/PAL)
AC Adaptor/PoE

ایران پاناسونیک
آدرس سایت:www.iranpanasonic.ir
تلفن: [phone]

دوربین پاناسونیک مدل WV-CW314 L

دوربین پاناسونیک مدل WV-CW314 L


Image Sensor: 1/3 type interline transfer CCD
Effective Pixels: 976 (H) x 494 (V)
Scanning Mode: 2:1 interlace
Scanning Area: 4.8mm (H) x 3.6 mm (V) {3/16 inches(H) c 5/32 inches(V) }
Scanning Frequency: Horizontal: 15.734 KHz Vertical: 59.94 Hz
Horizontal Resolution: 650 TV lines
Minimum Illumination: Colour: 0.08 lx {0.008 footcandle} (color mode)
B/W: 0.008 lx {0.0008 footcandle} (black-and-white mode infrared LED light off)
B/W: 0 lx {0 footcandle} (black-and-white mode infrared LED light on)
Signal-to-Noise Ratio: 52 dB (AGC: OFF)
White Balance: AWC (2,000 ~ 10,000 K), ATW1 (2,700 ~ 6,000 K), ATW2 (2,000 ~ 6,000 K)
Light Control: ALC/ALC+/ELC
BLC: ON / OFF
ABS: ON / OFF
AGC: ON (LOW, MID, HIGH) / OFF
Electronic Shutter: OFF(1/60), 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000,1/10000, 1/120000 (s)
Electronic Sensitivity UP: 32x max. AUTO, 512x max. FIX
Day & Night (IR): AUTO1 / AUTO2 / ON / OFF
LED: OFF / AUTO / FIX (available for D&N AUTO2 mode or D&N ON mode)
Digital Noise Reduction: High or Low
Scene File: 2 patterns
Video Motion Detection: OFF / MOTION DET / SCENE CHANGE
Privacy Zone: ON(1) / ON(2) / OFF
Image Stabilizer: ON / OFF
Auto Focus: Lens AF / MANUAL
IR LED irradiation distance: 50 m {164 feet}
Synchronization: Internal (INT)
Lens:
Focal Length: 2.8 mm ~ 10.0 mm {5/16 inches-13/32 inches}
Zoom Ratio: 3.6x
Angular Field of View: H: 100° 50' (Wide) ~ 27° 39' (Tele)
V: 73° 51' (Wide) ~ 20° 45' (Tele)
Maximum Aperture Ratio: 1:1.3(Wide)~1:3.1(Tele)
Focusing Range: 0.3 m ~ {0.98 feet ~ }
Input/Output:
Video Output: 1.0 V [p-p] / PAL composite 75
Controller Interface: Coaxial Multiplex System
General:
Setup Method: OSD setup menu
Language: English, French, Italian, Spanish, German, Russian, Chinese, Japanese
Power Source and: 24 V AC: 5.2 W,
Power Consumption: 12 V DC: 560 mA (LED ON)
Ambient Operating Temperature: ?10 °C ~ +50 °C {14 °F ~ 122 °F}
Ambient Operating Humidity: 90 % or less (without condensation)
Water and Dust Resistance: IP66, IEC60529 measuring standard compatible
Dimensions: ?79 mm X 245 mm(H) {?3-7/64 inches × 9-21/32 inches (H)}
Mass (approx.): 1050 g {2.31 lbs.}
Finish: Silver (SL23-b2)


ایران پاناسونیک
آدرس سایت:www.iranpanasonic.ir
تلفن: [phone]

دوربین پاناسونیک مدل WV-CP620

دوربین پاناسونیک مدل WV-CP620

"Chip Size: 1/3
Type: Color and B/W
Mechanism: Fixed
Resolution: 650 TV Lines
Connectivity: Analog
Minimum Illumination: 0.08 lx (Color), 0.008 lx (B/W) at F1.4
Lens: 2.8 - 10mm 3.6x Varifocal Auto Iris Lens
Advanced Technology: Super Dynamic 6, Adaptive Black Stretch, Adaptive Digital Noise Reduction
Signal-to-Noise Ratio: 52 dB
Power: 120 V AC 60Hz 2.3 W
Dimensions (H x W X D): 2 5/32" X 2 27/32" X 3 31/32"
Weight: 0.42


ایران پاناسونیک
آدرس سایت:www.iranpanasonic.ir
تلفن: [phone]

دوربین پاناسونیک مدلWV-CP294

دوربین پاناسونیک مدلWV-CP294


Interline Transfer CCD Sensor1/3"
DSP with Adaptive Black Stretch Feature
Corrects Shadow & Dark Areas of an Image
Back Light Compensation
Low-light Sensitivity (0.04 lux in B/W)
True Day/Night / IR Cut Filter
Resolution up to 540 TVL
Signal-to-Noise Ratio up to 50 dB
Dual Voltage (24 VAC or 12 VDC)
Used with CS-Mount/DC-Servo ALC Lenses




ایران پاناسونیک
آدرس سایت:www.iranpanasonic.ir
تلفن: [phone]
