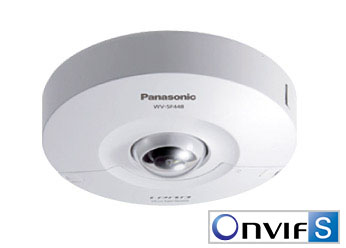

دوربین پاناسونیک مدلWV-SF448

دوربین پاناسونیک مدلWV-SF448

Features sub navigation
Wide range of image modes (Select the ideal image mode based on what you want to monitor and where the camera is installed.)
Built-in Image and Distortion Correction
Privacy Mode
Installation Method
High Resolution (1080p Full HD images to 30fps)
Super Dynamic Function & Face Detection
2-area VIQS (Variable Image Quality on Specified Area)
Smooth PTZ operation without mechanical action
Two-way audio
Smartphone Monitoring
SDXC Memory Card Compatible
Motion Detection + Panasonic alarm protocol notification (Link with PTZ camera etc.)
Privacy Zone
Vandal Resistant Mechanism
Small and thin compact body


ایران پاناسونیک
آدرس سایت:www.iranpanasonic.ir
تلفن: [phone]

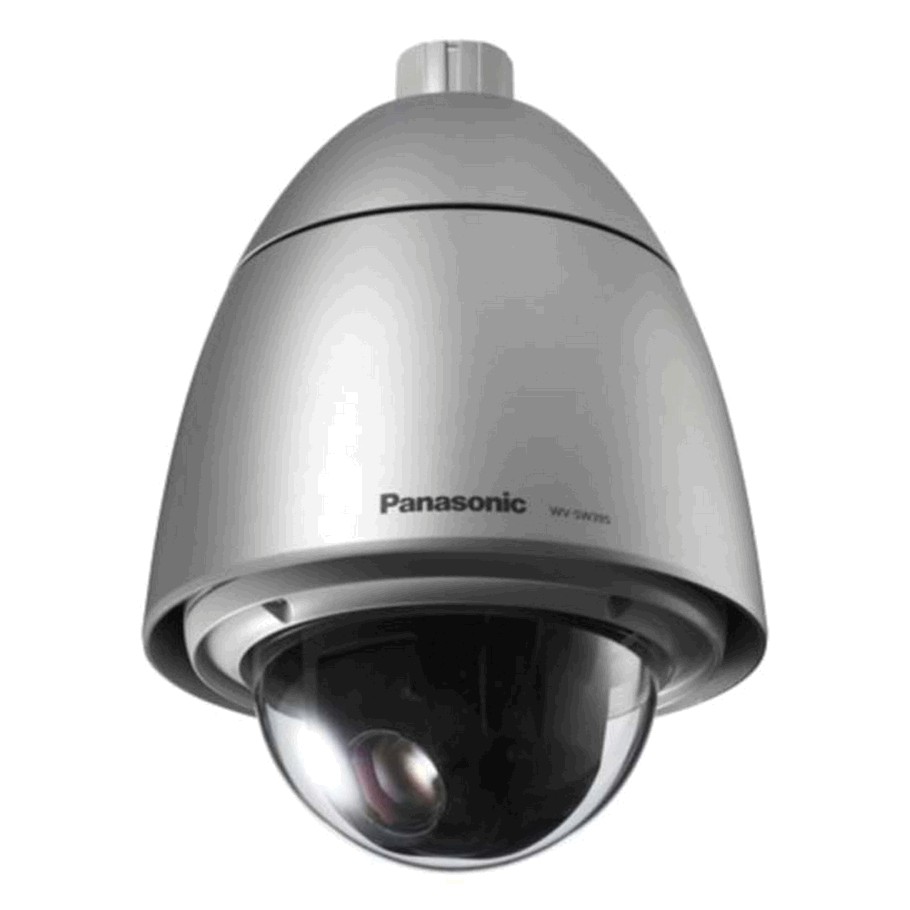

دوربین پاناسونیک مدلWV-NW960

دوربین پاناسونیک مدل WV-NW960

Chip Inch Size 1/4
Colour Type Colour / Monochrome
Resolution TVL 640 x 480
Dome Type PTZ
Sensitivity lux 0.0013
Pan Speed o/ sec 400
Digital (DSP) Yes
Tilt Speed o/ sec 400
Mount Type Wall
Focal length 3.8 ~ 114
Rotation Angleso 360 pan, -5 ~ +185 tilt
Presets 256
Compression M-JPEG, JPEG, MPEG-4
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 1/60 ~ 1/100
S/ N (Signal/ Noise) Ratio dB 52
Signal Mode PAL, NTSC
Video Output 1 Vpp, 75 Ohms
Zoom Ratio x30
Electrical Specifications Voltage: 24 V AC
Power Consumption: 85 W

Network Properties Interface: 10Base-T / 100Base-TX, RJ-45
Network Protocols: TCP/IP, UDP/IP, HTTP, FTP, SMTP, DHCP, DNS, DDNS
Image Frame Rate: 30 fps

Physical Specifications Dimensions mm: 239 x 396
Weight g: 4,900

Environmental Specifications Operating Temp oC: -40 ~ +50
Operating Humidity %: 0 ~ 90
Protection: IP66

System Requirments Web Browser: Microsoft Internet Explorer 7.0, 6.0 SP2

Model Info Super Dynamic III technology delivers 128x wider dynamic range compared to conventional cameras. High sensitivity with day-night function: 0.5 lux (Colour) at F1.4 (WIDE), 0.04 lux (B/W) at F1.4 (WIDE). IR cut filter switches on and off to ensure optimal picture quality in both colour and B/W.
More Panasonic IP Dome cameras Panasonic WV-SW458  Panasonic WV-SW155  Panasonic WV-SC384
 Panasonic WV-SW598  Panasonic WV-SC588  Panasonic WV-SFV631L

Show allSee also:
Panasonic i-Pro Series | CCTV cameras | IP cameras | Dome cameras | CCTV camera lenses | CCTV camera lighting | Video motion detectorsSee other Panasonic products:
Panasonic IP Dome cameras | Panasonic IP cameras | Panasonic CCTV cameras | Panasonic Dome cameras | Panasonic CCTV software

ایران پاناسونیک
آدرس سایت:www.iranpanasonic.ir
تلفن: [phone]

دوربین پاناسونیک مدل WV-NW484

دوربین پاناسونیک مدل WV-NW484


Chip Size   1/3"
 Type   Color and B/W
 Mechanism   Fixed
 Connectivity   IP
 Structure   Vandal-proof
 Resolution   VGA (640 x 480)/ QVGA (320 x 240)
 Minimum Illumination   Color (30IRE):1.5lux (Sens up:OFF),0.046lux(Sens up:32X)at F1.4
B/W(10IRE);0.16(Sens up: OFF),0.005lux(Sens up:32x) at F1.4
 Lens   2x vari-focal, 3.8mm-8.0mm
 Advanced Technology   Super Dynamic III
 Power   24V AC, 60Hz / 12 V DC/ PoE(IEEE802.3af)
 Dimensions (H x W)   6.03125'' x 6.25''
 Weight   4.18 lbs



ایران پاناسونیک
آدرس سایت:www.iranpanasonic.ir
تلفن: [phone]

دوربین پاناسونیک مدل WV-NS950

دوربین پاناسونیک مدل WV-NS950

- Super dynamic III technology delivers 128x wider dynamic range
- High sensitivity with Day-Night function
- Adaptive digital noise reduction
- Electronic sensitivity enhancement
- Built-in video motion detector
- Auto image stabiliser
- MPEG-4 and JPEG dual stream output
- Built-in network interface
- Multi-language
- SD memory card slot



ایران پاناسونیک
آدرس سایت:www.iranpanasonic.ir
تلفن: [phone]

دوربین پاناسونیک مدلWV-NP304

دوربین پاناسونیک مدلWV-NP304


  Chip Size   1/3
 Type   Simple Day/Night

 Mechanism   Fixed

 Minimum Illumination   1.5 lux color, 0.9 lux B/W

 Lens   optional

 Power   PoE, 12V DC

 Dimensions   2 13/16" x 2 11/16" x 6 ¼? H (72 x 68 x 158mm)

 Weight   1.03 lbs (470 g)
