معرفی و توضیح در مورد دوربین مداربسته پاناسونیکPanasonic NVR WJNV20024CH
TV system| NTSC | PAL | ||
| Supported cameras | |||
| Supported cameras | Panasonic i-Pro series network cameras (Contact Panasonic for Axis cameras ) | ||
| Supported image format | H.264, MPEG-4, M-JPEG | ||
| Supported image resolution | SXVGA (1,280 x 960) / VGA (640 x 480) / QVGA (320 x 240) (depends on camera used) | ||
| Supported audio format | G.726 (ADPCM) 32 kbps | ||
| Maximum # of cameras | 24 | ||
| Recording | |||
| Recording mode | Event, Schedule | ||
| Pre-alarm recording | Up to 15 seconds | ||
| Scheduled recording mode | 2 programs, 3 time zones/day (independent setup for each day of the week) | ||
| Frame rate/camera | Up to 30 ips (depends on camera used) | ||
| Browser GUI | |||
| Camera control | Pan/tilt, zoom, focus, brightness, preset position call and program (up to 256), auto mode, click centring, mouse wheel zoom, zoom reset | ||
| Playback control | REC, PLAY, Rev PLAY, Pause, STOP, FF, FR, Prev Record, Next Record, Prev image, Next image, Goto date, Goto last (30 sec | ||
| Search mode | Search filter: Time date, Event type, VMD, camera number | ||
| Display mode | 1 / 4 screen | ||
| Image download | Recorded data of selected camera and time range can be downloaded to a PC (viewer software can be downloaded separately). | ||
| Copy | Recorded data of selected cameras and time date range can be copied to an optional SD/SDHC card | ||
| Camera title | Up to 14 characters | ||
| Clock display | On the browser (Time: 12H/24H, Date: 3 formats) | ||
| Digital zoom | Live/Play: 2x / 4x (1 screen only) | ||
| System log | Operator access (100) / Network error (100) / Error (1,000) / Event (750) | ||
| GUI language | English, French, Italian, Spanish, German, Russian, Japanese | ||
| Supported OS/Browser (OS must be the same as selected GUI language) | Microsoft® Windows® 7 Professional 64/32 bit (Internet Explorer® 8.0) | ||
| Microsoft® Windows® Vista® Business SP1, 32 bit (Internet Explorer® 7.0) | |||
| PC requirements | M-JPEG / MPEG-4 | CPU: Intel® Core™ 2 Duo 2.66 GHz or faster, RAM: 1GB or more | |
| VRAM: 128 MB or more (Min. 64MB), Microsoft® DirectX® 9.0c or later | |||
| H.264 | CPU: Intel® Core™ i7-920 or faster, RAM: 3GB or more | ||
| VRAM: 128 MB or more (Min. 64MB), Microsoft® DirectX® 9.0c or later | |||
| Alarm event | |||
| Alarm source | 9x terminal inputs / 16x camera alarms (Panasonic alarm protocol) | ||
| Face detection | OFF / ON | ||
| Event mode | OFF / ON | ||
| Alarm action | Alarm recording, email notification, alarm message, camera position, terminal output, Panasonic alarm protocol, buzzer, indicator | ||
| Alarm control | Reset | ||
| Event log | 750 | ||
| Input/output | |||
| Output | 1 V [p-p] / 75 ohms (BNC) (x1) | ||
| Monitor (HDMI) | HDMI (x1) | ||
| Audio output | -10 dBv, 600 ohms, unbalanced (RCA) (x1) | ||
| Alarm / control (25-pin D-sub) | Alarm | Alarm input 1 ~ 9*1, Alarm output*2, Alarm reset input*1, Face matching output*2 | |
| Control | Time adjustment input*1, +5 V output*3 | ||
| Error/warning | Network error output*2, HDD error output*2, Camera error output*2, Recorder error output*2, Recording error output*2 | ||
| Mouse port | x1 | ||
| Network port | 10BASE-T / 100BASE-TX / 1000BASE-T (RJ-45) (x1) | ||
| SD/SDHC cards | SD/SDHC cards applicable (miniSD cards and microSD cards not applicable) | ||
| Network | |||
| Maximum bandwidth | Total: 80 Mbps or less | ||
| Supported protocol | TCP/IP, UDP/IP, HTTP, FTP, SMTP, DNS, NTP, SNMP, RTP | ||
| Upon alarm or warning | |||
| No. of simultaneous users | 2 or less | ||
| User registration | Up to 16 users | ||
| User level | 3 levels (programmable) | ||
| Partitioning | User: Camera (View only, View & control, No access) | ||
| Security method | User authentication (ID and password); alteration detection | ||
| Other functions | |||
| Time synchronization | Terminal (Slave), NTP (Server/Client) | ||
| Summer time | User definable (using menu setup) | ||
| Hard disk drive (HDD) | |||
| Type | 3.5 inch, Serial ATA HDD (Up to 2x HDDs can be installed) | ||
| Software | |||
| Playback control | PLAY, Rev PLAY, Pause, FF, FR, Prev Record, Next Record, Prev image, Next image | ||
| Additional functions | Alteration detection, Save as JPEG, 2x zoom, Print, Copy | ||
| Supported OS / Language | Same as browser GUI (software language will be English) | ||
| General | |||
| Safety / EMC standard | UL (UL60065), FCC (Part15 ClassA), C-UL (CAN/CSA C22.2 No.60065), DOC (ICES003 Class A) | CE (EN60065, EN55022 ClassB, EN55024), GOST (GOST R 51558) | |
| Power source | 120V AC, 60 Hz | 220 - 240V AC, 50/60 Hz | |
| Power consumption | 45 W (approx.) | ||
| Ambient operating temperature | Main body: +5 °C - +45 °C / Mouse (included): +5 °C - +45 °C | ||
| Ambient operating humidity | 5% - 90% (without condensation) | ||
| Maximum operating altitude | 2,000 m above sea level | ||
| Dimensions (W x H x D) | 420 x 88 x 300 mm (excluding rubber feet and projections) | ||
| Weight | 4.8 kg without HDD / 5.6 kg (with 1 HDD) / 6.4 kg (with 2 HDDs) | ||
ایران پاناسونیک
- آدرس سایت : WWW.IRANPANASONIC.IR
- تلفن : 77615100
Panasonic NVR WJ-ND300A
Make| Panasonic | |
| Model code | WJ-ND300A |
| Recording Mode | Real Time / Timelapse / Event |
| Video inputs | 32 |
| Recording system | HDD |
| Storage capacity | 250 |
| Voltage | 220 ~ 240 V AC |
| Power consumption (W) | 85 W |
| Weight (kg) | 8.3 |
| Dimensions (mm) | 420 x 350 x 88 |
| Operating temperature (°C) | 5 ~ 45 |
ایران پاناسونیک
|

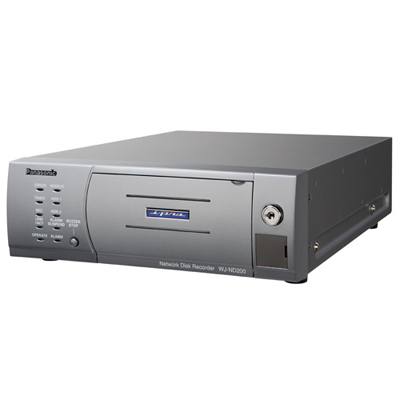

Panasonic NVR WJ-ND200A
| Model code | WJ-ND200 |
|---|---|
| Recording Mode | Real Time / Timelapse / Event |
| Video inputs | 8, 16, 64 |
| Hardware solution | Yes |
| Recording system | HDD, RAID-1 |
| Resolution | 1,280 x 960, 960 x 720, 640 x 480, 320 x 240 |
| Signal mode | PAL, NTSC |
| Removable HDD | Yes |
| Instantaneous playback | Yes |
| Operating system | Microsoft® Windows Vista® Business 32 bit* |
| Voltage | 120 V AC, 60 Hz |
| Power consumption (W) | approx. 35W |
| Weight (kg) | 4.7 |
| Dimensions (mm) | 270 x 88 x 360 |
| Operating temperature (°C) | 5 ~ 45 |
| Operating humidity (%) | 5 ~ 90 |
Additional info
|
دوربین مدار بسته پاناسونیک wv-sud6frl1
WV-NP502/NW502S and H.264 video stream supported• Up to 256 cameras, including cameras connected to the i-Pro Network Video Encoder (WJ-NT304/WJ-NT314), can be registered
• HDMI interface supporting 1,920 x 1,080 display size
• 1x 4VGA image with 2x VGA images or 6x VGA images can be displayed in multiscreen mode
• Each of VGA images can be displayed at 30 or 25 frames/sec. (NTSC/PAL)
• Superior reliability and installation flexibility with an embedded OS and -10 to 50 °C operating
ایران پاناسونیک
- آدرس سایت : WWW.IRANPANASONIC.IR
- تلفن : 77615100
دوربین مداربسته پاناسونیک AW-HE2
دوربین مداربسته پاناسونیک AW-HE2HDMI, USB-Video and IP Outputs
IP-Live Preview Video & Control
Internal PiP, Stereo Microphone and PTZ Presets
1 / 2.33 type Full-HD MOS (1920 x 1080 pixels)
850 TV Lines horizontal resolution
IP control supported, IR remote control
