مقالات دوربین مداربسته پاناسونیک
معرفی و توضیح در مورد دوربین مداربسته پاناسونیک
مقالات دوربین مداربسته پاناسونیک

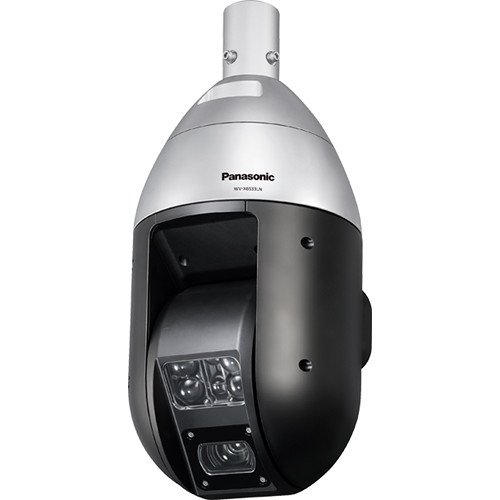

معرفی و توضیح در مورد دوربین مداربسته پاناسونیکدوربین مدار بسته پاناسونیک wv-6532 lnl
Concept & Main Features
New i-PRO extreme camera built-in IR-LEDs enable the
capture of low light evidence
even at distances 350 meter away in a 0 lux environ
ment.
3
View objects in dark condition with IR LED with ne
w auto focus
High powered 40x optical zoom / Intelligent zoom sta
bilization
ClearSight coating
Dehumidification and defrosting with the new defros
ter
Intelligent Auto
/ 30 degree elevation angle
Extreme Visibility
Extreme Visibility
Extreme Compression
Extreme Compression
H.265 compression with new smart coding technology
Extreme Data Security
Extreme Data Security
Secure communication with Digicert (Formerly
Symantec) certification
Extreme Reliability
Extreme Reliability
Vandal resistant / IP66 compliant
40x WV-X6533LN
Extreme Analytics
Extreme Analytics
i-VMD(intelligent Video Motion Detection) license b
undled
22x WV-X6532LN
Usability
Usability
Support Fiber Optic Media Converter Unit (Option)ایران پاناسونیک
آدرس سایت:www.iranpanasonic.ir
تلفن: 77615100
دوربین مدار بسته پاناسونیک wv-3111l
| ndoor / Outdoor | Indoor | |
| Image sensor | 1/3 CMOS | |
| Min. Illumination Color (lx) | 0.02 | |
| Min. Illumination B/W (lx) | 0.01 / 0 (w/IR-LED) | |
| Maximum Resolution | HD (720p / 1,280x 960) | |
| Maximum FPS | 60 | |
| Super Dynamic | Yes | |
| Image compensation | Adaptive Black Stretch, Back light compensation (BLC), Fog compensation, High light compensation (HLC), Digital noise reduction | |
| Color/BW | ICR | |
| ABF(Auto back focus)/Auto Focus/Focus Assist | - | |
| IR LED | Yes | |
| Image Stabilizer | - | |
| Corridor Mode | Yes | |
| Privacy Zone | 8 | |
| iA (Intelligent Auto) | Yes | |
| Intelligent VMD (i-VMD) | Type4 | |
| Focal length | f=2.8mm {1/8 inches}, F2.3 | |
| Zoom ratio | 1x | |
| Angular field of view (16:9) | H: 97 deg. V: 54 deg. | |
| Angular field of view (4:3) | H: 97 deg. V: 72 deg. | |
| Panning Range | -45 - +45 deg. | |
| Tilting Range | 0 - +90 deg. | |
| Network IF | 10Base-T, 100Base-TX, RJ45 connector | |
| Video Codec | H.265, H.264, JPEG | |
| Transmission mode (H.265/H.264) | Variable bit rate, Frame rate, Best effort | |
| Smart Coding | Yes | |
| Audio Support | Yes | |
| Built-in microphone | Yes | |
| Microphone/Line Input | - | |
| Audio Output | - | |
| SD memory Card Slot | microSDXC | |
| External I/O Terminals | - | |
| Ambient Operating Humidity | 10-100 | |
| Vandal Resistant | - | |
| Water and Dust Resistance | - | |
| ClearSight Coating / Rain Wash Coating | - | |
| Dehumidification device | - | |
| Temperature (degree, Celsius) | MAX | 40 |
| MIN | 0 | |
| Temperature (degree, Fahrenheit) | MAX | 104 |
| MIN | 32 | |
| Power Source | PoE | |
| SSL device certificate | Yes | |
| ONVIF Profile | S, G, T | |
ایران پاناسونیک
آدرس سایت:www.iranpanasonic.ir
تلفن: 77615100
دوربین مدار بسته پاناسونیک wv-3131l
| Indoor / Outdoor | Indoor | |
| Image sensor | 1/3 CMOS | |
| Min. Illumination Color (lx) | 0.03 | |
| Min. Illumination B/W (lx) | 0.015 / 0 (w/IR-LED) | |
| Maximum Resolution | 2MP – 3MP (1,080p / 2,048 x 1,536) | |
| Maximum FPS | 60 | |
| Super Dynamic | Yes | |
| Image compensation | Adaptive Black Stretch, Back light compensation (BLC), Fog compensation, High light compensation (HLC), Digital noise reduction | |
| Color/BW | ICR | |
| ABF(Auto back focus)/Auto Focus/Focus Assist | - | |
| IR LED | Yes | |
| Image Stabilizer | - | |
| Corridor Mode | Yes | |
| Privacy Zone | 8 | |
| iA (Intelligent Auto) | Yes | |
| Intelligent VMD (i-VMD) | Type4 | |
| Focal length | f=2.8mm {1/8 inches}, F2.3 | |
| Zoom ratio | 1x | |
| Angular field of view (16:9) | H: 108 deg. V: 60 deg. | |
| Angular field of view (4:3) | H: 89 deg. V: 66 deg. | |
| Panning Range | -45 - +45 deg. | |
| Tilting Range | 0 - +90 deg. | |
| Network IF | 10Base-T, 100Base-TX, RJ45 connector | |
| Video Codec | H.265, H.264, JPEG | |
| Transmission mode (H.265/H.264) | Constant bit rate, Variable bit rate, Frame rate, Best effort | |
| Smart Coding | Yes | |
| Audio Support | Yes | |
| Built-in microphone | Yes | |
| Microphone/Line Input | - | |
| Audio Output | - | |
| SD memory Card Slot | microSDXC | |
| External I/O Terminals | - | |
| Ambient Operating Humidity | 10-100 | |
| Vandal Resistant | - | |
| Water and Dust Resistance | - | |
| ClearSight Coating / Rain Wash Coating | - | |
| Dehumidification device | - | |
| Temperature (degree, Celsius) | MAX | 40 |
| MIN | 0 | |
| Temperature (degree, Fahrenheit) | MAX | 104 |
| MIN | 32 | |
| Power Source | PoE | |
| SSL device certificate | Yes | |
| ONVIF Profile | S, G, T | |
ایران پاناسونیک
آدرس سایت:www.iranpanasonic.ir
تلفن: 77615100
دوربین مدار بسته پاناسونیک wv-3512 lm
| ndoor / Outdoor | Outdoor | |
| Image sensor | 1/3 CMOS | |
| Min. Illumination Color (lx) | 0.02 | |
| Min. Illumination B/W (lx) | 0.01 / 0 (w/IR-LED) | |
| Maximum Resolution | HD (720p / 1,280x 960) | |
| Maximum FPS | 60 | |
| Super Dynamic | Yes | |
| Image compensation | Adaptive Black Stretch, Back light compensation (BLC), Fog compensation, High light compensation (HLC), Digital noise reduction | |
| Color/BW | ICR | |
| ABF(Auto back focus)/Auto Focus/Focus Assist | - | |
| IR LED | Yes | |
| Image Stabilizer | - | |
| Corridor Mode | Yes | |
| Privacy Zone | 8 | |
| iA (Intelligent Auto) | Yes | |
| Intelligent VMD (i-VMD) | Type4 | |
| Focal length | f=2.8mm {1/8 inches}, F2.3 | |
| Zoom ratio | 1x | |
| Angular field of view (16:9) | H: 97 deg. V: 54 deg. | |
| Angular field of view (4:3) | H: 97 deg. V: 72 deg. | |
| Panning Range | -45 - +45 deg. | |
| Tilting Range | 0 - +90 deg. | |
| Network IF | 10Base-T, 100Base-TX, RJ45 connector | |
| Video Codec | H.265, H.264, JPEG | |
| Transmission mode (H.265/H.264) | Constant bit rate, Variable bit rate, Frame rate, Best effort | |
| Smart Coding | Yes | |
| Audio Support | Yes | |
| Built-in microphone | Yes | |
| Microphone/Line Input | - | |
| Audio Output | - | |
| SD memory Card Slot | microSDXC | |
| External I/O Terminals | - | |
| Ambient Operating Humidity | 10-100 | |
| Vandal Resistant | IK10 (IEC62262) | |
| Water and Dust Resistance | IP66 (IEC60529), Type 4X(UL50), NEMA 4X | |
| ClearSight Coating / Rain Wash Coating | ClearSight Coating | |
| Dehumidification device | - | |
| Temperature (degree, Celsius) | MAX | 50 |
| MIN | -30 | |
| Temperature (degree, Fahrenheit) | MAX | 122 |
| MIN | -22 | |
| Power Source | PoE | |
| SSL device certificate | Yes | |
| ONVIF Profile | S, G, T | |
ایران پاناسونیک
آدرس سایت:www.iranpanasonic.ir
تلفن: 77615100
دوربین مدار بسته پاناسونیک wv-s3511l
| Indoor / Outdoor | Outdoor | |
| Image sensor | 1/3 CMOS | |
| Min. Illumination Color (lx) | 0.03 | |
| Min. Illumination B/W (lx) | 0.015 / 0 (w/IR-LED) | |
| Maximum Resolution | 2MP – 3MP (1,080p / 2,048 x 1,536) | |
| Maximum FPS | 60 | |
| Super Dynamic | Yes | |
| Image compensation | Adaptive Black Stretch, Back light compensation (BLC), Fog compensation, High light compensation (HLC), Digital noise reduction | |
| Color/BW | ICR | |
| ABF(Auto back focus)/Auto Focus/Focus Assist | - | |
| IR LED | Yes | |
| Image Stabilizer | - | |
| Corridor Mode | Yes | |
| Privacy Zone | 8 | |
| iA (Intelligent Auto) | Yes | |
| Intelligent VMD (i-VMD) | Type4 | |
| Focal length | f=2.8mm {1/8 inches}, F2.3 | |
| Zoom ratio | 1x | |
| Angular field of view (16:9) | H: 108 deg. V: 60 deg. | |
| Angular field of view (4:3) | H: 89 deg. V: 66 deg. | |
| Panning Range | -45 - +45 deg. | |
| Tilting Range | 0 - +90 deg. | |
| Network IF | 10Base-T, 100Base-TX, RJ45 connector | |
| Video Codec | H.265, H.264, JPEG | |
| Transmission mode (H.265/H.264) | Constant bit rate, Variable bit rate, Frame rate, Best effort | |
| Smart Coding | Yes | |
| Audio Support | Yes | |
| Built-in microphone | Yes | |
| Microphone/Line Input | - | |
| Audio Output | - | |
| SD memory Card Slot | microSDXC | |
| External I/O Terminals | - | |
| Ambient Operating Humidity | 10-100 | |
| Vandal Resistant | IK10 (IEC62262) | |
| Water and Dust Resistance | IP66 (IEC60529), Type 4X(UL50), NEMA 4X | |
| ClearSight Coating / Rain Wash Coating | - | |
| Dehumidification device | - | |
| Temperature (degree, Celsius) | MAX | 50 |
| MIN | -30 | |
| Temperature (degree, Fahrenheit) | MAX | 122 |
| MIN | -22 | |
| Power Source | PoE | |
| SSL device certificate | Yes | |
| ONVIF Profile | S, G, T | |
ایران پاناسونیک
آدرس سایت:www.iranpanasonic.ir
تلفن: 77615100
