مقالات دوربین مداربسته پاناسونیک
معرفی و توضیح در مورد دوربین مداربسته پاناسونیک
مقالات دوربین مداربسته پاناسونیک
معرفی و توضیح در مورد دوربین مداربسته پاناسونیکنرم افزار مدار بسته پاناسونیک wv-ase231
• To use the WV-ASF900, WV-ASM970 or WV-ASM200 with extension software WV-ASE231 is required.
• Extension Software for Facial Recognition Analytics Platform (WV-ASF900)
• Face Matching / Face Search / People counting results display on WV-ASM970 / WV-ASM200 screen
• i-VMD (Intelligent Video Motion Detection) tracking path display on WV-ASM970 / WV-ASM200 screeni-VMD(Intelligent Video Motion Detection) track path display / Face matching and search result displa
ایران پاناسونیک
آدرس سایت:www.iranpanasonic.ir
تلفن: 77615100
دوربین مدار بسته پاناسونیک wv-s2231l
| Indoor / Outdoor | Indoor | |
| Image sensor | 1/3 MOS | |
| Min. Illumination Color (lx) | 0.012 | |
| Min. Illumination B/W (lx) | 0.006 / 0 (w/IR-LED) | |
| Maximum Resolution | 2MP – 3MP (1,080p / 2,048 x 1,536) | |
| Maximum FPS | 60 | |
| Super Dynamic | Yes | |
| Image compensation | Adaptive Black Stretch, Back light compensation (BLC), Fog compensation, High light compensation (HLC), Digital noise reduction | |
| Color/BW | ICR | |
| ABF(Auto back focus)/Auto Focus/Focus Assist | ABF (Auto back focus) | |
| IR LED | Yes | |
| Image Stabilizer | Yes | |
| Corridor Mode | Yes | |
| Privacy Zone | 8 | |
| iA (Intelligent Auto) | Yes | |
| Intelligent VMD (i-VMD) | Type4 | |
| Focal length | f=2.8 - 10 mm, {1/8 - 13/32 inches}, F1.6 Motorized | |
| Zoom ratio | 3.6x | |
| Angular field of view (16:9) | H: 30-109 deg. V: 17-58 deg. | |
| Angular field of view (4:3) | H: 25-90 deg. V: 19-65 deg. | |
| Panning Range | -240 - +120 deg. | |
| Tilting Range | -30 - +85 deg. | |
| Network IF | 10Base-T, 100Base-TX, RJ45 connector | |
| Video Codec | H.265, H.264, JPEG | |
| Transmission mode (H.265/H.264) | Constant bit rate, Variable bit rate, Frame rate, Best effort | |
| Smart Coding | Yes | |
| Audio Support | Yes | |
| Built-in microphone | - | |
| Microphone/Line Input | Yes | |
| Audio Output | Yes | |
| SD memory Card Slot | SDXC | |
| External I/O Terminals | Yes | |
| Ambient Operating Humidity | 10-90 | |
| Vandal Resistant | IK10 (IEC62262) | |
| Water and Dust Resistance | - | |
| ClearSight Coating / Rain Wash Coating | - | |
| Dehumidification device | - | |
| Temperature (degree, Celsius) | MAX | 50 |
| MIN | -10 | |
| Temperature (degree, Fahrenheit) | MAX | 122 |
| MIN | 14 | |
| Power Source | PoE, 12V DC | |
| SSL device certificate | Yes | |
| ONVIF Profile | S, G | |
ایران پاناسونیک
آدرس سایت:www.iranpanasonic.ir
تلفن: 77615100

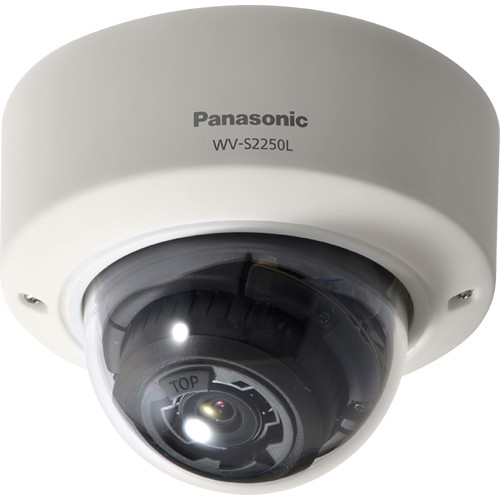

دوربین مدار بسته پاناسونیک wv-s2250 l
| Indoor / Outdoor | Indoor | |
| Image sensor | 1/2.8 CMOS | |
| Min. Illumination Color (lx) | 0.07 | |
| Min. Illumination B/W (lx) | 0.04 / 0 (w/IR-LED) | |
| Maximum Resolution | 5MP | |
| Maximum FPS | 30 | |
| Super Dynamic | Yes | |
| Image compensation | Adaptive Black Stretch, Back light compensation (BLC), Fog compensation, High light compensation (HLC), Digital noise reduction | |
| Color/BW | ICR | |
| ABF(Auto back focus)/Auto Focus/Focus Assist | Auto Focus | |
| IR LED | Yes | |
| Image Stabilizer | - | |
| Corridor Mode | Yes | |
| Privacy Zone | 8 | |
| iA (Intelligent Auto) | Yes | |
| Intelligent VMD (i-VMD) | - | |
| Focal length | f=2.9 - 9mm, {1/8 - 11/32 inches}, F1.3 Motorized | |
| Zoom ratio | 3.1x (Motorized zoom / Motorized focus) | |
| Angular field of view (16:9) | H: 33-105 deg. V: 19-56 deg. | |
| Angular field of view (4:3) | H: 33-105 deg. V: 25-76 deg. | |
| Panning Range | -240 - +120 deg. | |
| Tilting Range | -30 - +85 deg. | |
| Network IF | 10Base-T, 100Base-TX, RJ45 connector | |
| Video Codec | H.265, H.264, JPEG | |
| Transmission mode (H.265/H.264) | Constant bit rate, Variable bit rate, Frame rate, Best effort | |
| Smart Coding | Yes | |
| Audio Support | Yes | |
| Built-in microphone | - | |
| Microphone/Line Input | Yes | |
| Audio Output | Yes | |
| SD memory Card Slot | SDXC | |
| External I/O Terminals | Yes | |
| Ambient Operating Humidity | 10-90 | |
| Vandal Resistant | IK10 (IEC62262) | |
| Water and Dust Resistance | - | |
| ClearSight Coating / Rain Wash Coating | - | |
| Dehumidification device | - | |
| Temperature (degree, Celsius) | MAX | 50 |
| MIN | -10 | |
| Temperature (degree, Fahrenheit) | MAX | 122 |
| MIN | 14 | |
| Power Source | PoE, 12V DC | |
| SSL device certificate | Yes | |
| ONVIF Profile | S, G | |
| Indoor / Outdoor | Indoor | |
| Image sensor | 1/2.8 CMOS | |
| Min. Illumination Color (lx) | 0.07 | |
| Min. Illumination B/W (lx) | 0.04 / 0 (w/IR-LED) | |
| Maximum Resolution | 5MP | |
| Maximum FPS | 30 | |
| Super Dynamic | Yes | |
| Image compensation | Adaptive Black Stretch, Back light compensation (BLC), Fog compensation, High light compensation (HLC), Digital noise reduction | |
| Color/BW | ICR | |
| ABF(Auto back focus)/Auto Focus/Focus Assist | Auto Focus | |
| IR LED | Yes | |
| Image Stabilizer | - | |
| Corridor Mode | Yes | |
| Privacy Zone | 8 | |
| iA (Intelligent Auto) | Yes | |
| Intelligent VMD (i-VMD) | - | |
| Focal length | f=2.9 - 9mm, {1/8 - 11/32 inches}, F1.3 Motorized | |
| Zoom ratio | 3.1x (Motorized zoom / Motorized focus) | |
| Angular field of view (16:9) | H: 33-105 deg. V: 19-56 deg. | |
| Angular field of view (4:3) | H: 33-105 deg. V: 25-76 deg. | |
| Panning Range | -240 - +120 deg. | |
| Tilting Range | -30 - +85 deg. | |
| Network IF | 10Base-T, 100Base-TX, RJ45 connector | |
| Video Codec | H.265, H.264, JPEG | |
| Transmission mode (H.265/H.264) | Constant bit rate, Variable bit rate, Frame rate, Best effort | |
| Smart Coding | Yes | |
| Audio Support | Yes | |
| Built-in microphone | - | |
| Microphone/Line Input | Yes | |
| Audio Output | Yes | |
| SD memory Card Slot | SDXC | |
| External I/O Terminals | Yes | |
| Ambient Operating Humidity | 10-90 | |
| Vandal Resistant | IK10 (IEC62262) | |
| Water and Dust Resistance | - | |
| ClearSight Coating / Rain Wash Coating | - | |
| Dehumidification device | - | |
| Temperature (degree, Celsius) | MAX | 50 |
| MIN | -10 | |
| Temperature (degree, Fahrenheit) | MAX | 122 |
| MIN | 14 | |
| Power Source | PoE, 12V DC | |
| SSL device certificate | Yes | |
| ONVIF Profile | S, G | |
ایران پاناسونیک
آدرس سایت:www.iranpanasonic.ir
تلفن: 77615100
دوربین مدار بسته پاناسونیک wv-s2550 l
v
ایران پاناسونیک
آدرس سایت:www.iranpanasonic.ir
تلفن: 77615100
| Indoor / Outdoor | Outdoor | |
| Image sensor | 1/2.8 CMOS | |
| Min. Illumination Color (lx) | 0.07 | |
| Min. Illumination B/W (lx) | 0.04 / 0 (w/IR-LED) | |
| Maximum Resolution | 5MP | |
| Maximum FPS | 30 | |
| Super Dynamic | Yes | |
| Image compensation | Adaptive Black Stretch, Back light compensation (BLC), Fog compensation, High light compensation (HLC), Digital noise reduction | |
| Color/BW | ICR | |
| ABF(Auto back focus)/Auto Focus/Focus Assist | Auto Focus | |
| IR LED | Yes | |
| Image Stabilizer | - | |
| Corridor Mode | Yes | |
| Privacy Zone | 8 | |
| iA (Intelligent Auto) | Yes | |
| Intelligent VMD (i-VMD) | Type6 | |
| Focal length | f=2.9 - 9mm, {1/8 - 11/32 inches}, F1.3 Motorized | |
| Zoom ratio | 3.1x (Motorized zoom / Motorized focus) | |
| Angular field of view (16:9) | H: 33-103 deg. V: 19-55 deg. | |
| Angular field of view (4:3) | H: 33-103 deg. V: 25-75 deg. | |
| Panning Range | -180 - +180 deg. | |
| Tilting Range | -30 - +85 deg. | |
| Network IF | 10Base-T, 100Base-TX, RJ45 connector | |
| Video Codec | H.265, H.264, JPEG | |
| Transmission mode (H.265/H.264) | Constant bit rate, Variable bit rate, Frame rate, Best effort | |
| Smart Coding | Yes | |
| Audio Support | Yes | |
| Built-in microphone | - | |
| Microphone/Line Input | Yes | |
| Audio Output | Yes | |
| SD memory Card Slot | SDXC | |
| External I/O Terminals | Yes | |
| Ambient Operating Humidity | 10-100 | |
| Vandal Resistant | IK10 (IEC62262), 50J (IEC60068-2-75) | |
| Water and Dust Resistance | IP66 (IEC60529), Type 4X(UL50), NEMA 4X | |
| ClearSight Coating / Rain Wash Coating | - | |
| Dehumidification device | - | |
| Temperature (degree, Celsius) | MAX | 60 / 50 (w/IR-LED) |
| MIN | -40 | |
| Temperature (degree, Fahrenheit) | MAX | 140 / 122 (w/IR-LED) |
| MIN | -40 | |
| Power Source | PoE, 12V DC | |
| SSL device certificate | Yes | |
| ONVIF Profile | S, G, T | |
ایران پاناسونیک
آدرس سایت:www.iranpanasonic.ir
تلفن: 77615100
دوربین مدار بسته پاناسونیک wv-1550 l
| Indoor / Outdoor | Outdoor | |
| Image sensor | 1/2.8 CMOS | |
| Min. Illumination Color (lx) | 0.07 | |
| Min. Illumination B/W (lx) | 0.04 / 0 (w/IR-LED) | |
| Maximum Resolution | 5MP | |
| Maximum FPS | 30 | |
| Super Dynamic | Yes | |
| Image compensation | Adaptive Black Stretch, Back light compensation (BLC), Fog compensation, High light compensation (HLC), Digital noise reduction | |
| Color/BW | ICR | |
| ABF(Auto back focus)/Auto Focus/Focus Assist | Auto Focus | |
| IR LED | Yes | |
| Image Stabilizer | - | |
| Corridor Mode | Yes | |
| Privacy Zone | 8 | |
| iA (Intelligent Auto) | Yes | |
| Intelligent VMD (i-VMD) | - | |
| Focal length | f=2.9-9mm, {1/8 - 11/32 inches}, F1.3 Motorized | |
| Zoom ratio | 3.1x (Motorized zoom / Motorized focus) | |
| Angular field of view (16:9) | H: 34-106 deg. V: 19-57 deg. | |
| Angular field of view (4:3) | H: 34-106 deg. V: 25-77 deg. | |
| Panning Range | -180 - +180 deg. | |
| Tilting Range | -0 - +100 deg. | |
| Network IF | 10Base-T, 100Base-TX, RJ45 connector | |
| Video Codec | H.265, H.264, JPEG | |
| Transmission mode (H.265/H.264) | Constant bit rate, Variable bit rate, Frame rate, Best effort | |
| Smart Coding | Yes | |
| Audio Support | Yes | |
| Built-in microphone | - | |
| Microphone/Line Input | Yes | |
| Audio Output | Yes | |
| SD memory Card Slot | SDXC | |
| External I/O Terminals | Yes | |
| Ambient Operating Humidity | 10-100 | |
| Vandal Resistant | IK10 (IEC62262) | |
| Water and Dust Resistance | IP66 (IEC60529), Type 4X(UL50), NEMA 4X | |
| ClearSight Coating / Rain Wash Coating | - | |
| Dehumidification device | - | |
| Temperature (degree, Celsius) | MAX | 60 / 50 (w/IR-LED) |
| MIN | -40 | |
| Temperature (degree, Fahrenheit) | MAX | 140 / 122 (w/IR-LED) |
| MIN | -40 | |
| Power Source | PoE, 12V DC | |
| SSL device certificate | Yes | |
| ONVIF Profile | S, G, T | |
